This post is the second post in a two part look at Firebase Cloud Firestore security rules and how to unit test them. You can find part one at Firebase Cloud Firestore security rules - Part one - Writing the rules

Setting up

As in the previous article I’ll be making the assumption that you already have your development environment setup and the ability to run the Firebase Firestore emulator which you’ll need in order to run your tests. We’ll also be assuming that all of your Firestore rules and tests etc will be stored in a firestore folder at the root of your project.

You can find a repository with all the rules and the full suite of tests on Github. We wont be covering every single test case for every single rule we wrote but this article should give you a head start and an understanding of some of the basics.

We’ll be using Jest as our test runner. We’ll also need to install the firebase rule testing package and the jest-environment-node package

npm i --save-dev jest jest-environment-node @firebase/rules-unit-testing

Some of the tests may take a while to execute so it’s a good idea to up the jest timeout, you can set this easily by creating a jest.setup.js file at the root of your firestore folder.

jest.setTimeout(20000);

You then setup a jest.config.js file to make sure your tests are running in the correct environment and that the timeout settings above are loaded.

module.exports = {
  testEnvironment: 'node',
  setupFilesAfterEnv: ['./jest.setup.js'],
};

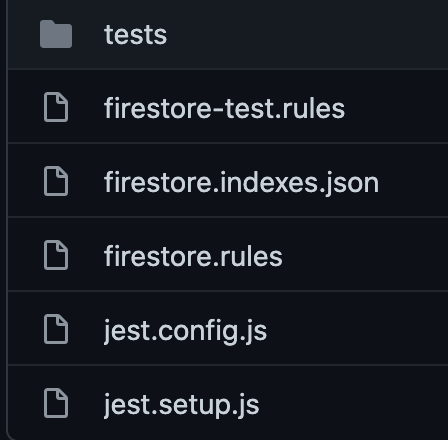

You should already have your firestore.rules file adjacent to these two.

We’re going to need to set default or dummy data into our Firestore emulator before many of our tests and we dont want to have to do that with our locked down rules in place, it would be much easier if we could pass a completely unrestricted ruleset to our Firestore emulator while we load in our test data and then apply our rules that we want to test and run in production before any of our actual test cases execute. Thankfully this is extremely easy and you can utilise the loadFirestoreRules method from the @firebase/rules-unit-testing package to load different rules as you wish. So lets create our unrestricted rules and then look at how we can use a simple pre test setup pattern to swap in these rules, enter our test data and then apply our production rules before our tests run. First though what does this unrestricted ruleset look like.

rules_version = '2';
service cloud.firestore {
  match /databases/{database}/documents {
    match /{document=**} {
      allow read, write: if true;
    }
  }
}

Almost identical to the default deny-all wildcard matching rule that we used in our production rules except this time we permit all methods rather than restrict them. Save this file as firestore-test.rules inside the firestore folder too we’ll come back to it in the next section. Finally create a tests folder and within that create a folder for each of y collections that will be tested.

Setup and teardown helpers

In all of the tests you’re going to want to initialise a test user, possibly some dummy data and the test app that tests will be run against and then straight after we’ll need to teardown that user and the data to leave a fresh environment ready for our next tests. To aid this there are two simple setup methods we can create and subsequently use in all of our tests.

First create a file called helpers.js at the root of your tests folder /firestore/tests/helpers.js and then copy and paste the following into the file.

const { apps, initializeTestApp, loadFirestoreRules } = require('@firebase/rules-unit-testing');
const { readFileSync } = require('fs');

module.exports.setup = async (auth, data) => {
  const projectId = `rules-spec-${Date.now()}`;
  const app = await initializeTestApp({
    projectId,
    auth,
  });

  // Create and initialise an app reference
  const db = app.firestore();

  // Apply the test rules so we can write documents without needing the admin app
  await loadFirestoreRules({
    projectId,
    rules: readFileSync('firestore/firestore-test.rules', 'utf8'),
  });

  // Write all mock documents before production rules are applied
  if (data) {
    for (const key in data) {
      const ref = db.doc(key);
      await ref.set(data[key]);
    }
  }

  // Apply production rules to be tested
  await loadFirestoreRules({
    projectId,
    rules: readFileSync('firestore/firestore.rules', 'utf8'),
  });

  // Return the app reference
  return db;
};

module.exports.teardown = async () => {
  Promise.all(apps().map((app) => app.delete()));
};

The setup method above creates a test app with our auth options and then creates a reference to our Firestore instance, next it loads our unrestricted rules set and iterates over any dummy data we may have passed to our setup method, inserting it into our Firestore instance. Finally once all of our dummy data has been written we load and apply our actual ruleset that we created in part 1, finally returning the database reference. The teardown method is fairly self explanatory in that it just deletes all data from our Firestore database.

Default ruleset tests

We previously wrote a default rule to ensure that any sort of extra collection we add without rules would be read and write protected, this should therefore definitely be the first place we test.

// /firestore/tests/default.test.js
const { setup, teardown } = require('./helpers');
const { assertFails } = require('@firebase/rules-unit-testing');

describe('Default firestore rules', () => {
  let db;
  let ref;

  beforeAll(async () => {
    db = await setup();
    ref = db.collection('non-existsent-collection');
  });

  afterAll(async () => {
    await teardown();
  });

  test('fail when trying to read from an unauthorised store', async () => {
    expect(await assertFails(ref.get()));
  });

  test('fail when trying to write to an unauthorised store', async () => {
    expect(await assertFails(ref.add({})));
  });
});

Again, fairly self explanatory - set up a random collection and assert that both a get request and an add request fail.

Store ruleset tests

Next let’s test our stores collection, here’s a reminder of the rules we have in place.

match /stores/{storeId} {
  allow read: if true;
  allow create: if false;
  allow update: if isStoreStaff(storeId);
  allow delete: if false;
}

We’ll start with the read/get rule. As it’s open to everyone we more want to make sure that this remains readable to all types of users whether authenticated or not.

First let’s make sure that non authenticated users can read from our stores collection.

test('succeed when a non authenticated user tries to load a store', async () => {
  const db = await setup(null, {
    'stores/ST01': {
      name: 'test',
    },
  });
  const ref = db.collection('stores');

  expect(await assertSucceeds(ref.doc('ST01').get()));
});

We pass null to our auth options to represent an unauthenticated user and then pass a single default test store to our stores collection we then assert that you can successfully read from this collection. We’ll do much the same in our next test to ensure that an authenticated user can also read from this collection, to test this we just make sure we pass a user/auth object to our setup function, it always makes sense to pass a uid property for a user object as we’ll be using this in some future tests and normally you’ll want to have rules where you check the user ID.

test('succeed when a authenticated user tries to load a store', async () => {
  const db = await setup(
    {
      uid: 'user',
    },
    {
      'stores/ST01': {
        name: 'test',
      },
    },
  );
  const ref = db.collection('stores');

  expect(await assertSucceeds(ref.doc('ST01').get()));
});

Let’s see that all together for the first test.

const { setup, teardown } = require('../helpers');
const { assertSucceeds } = require('@firebase/rules-unit-testing');

describe('Stores read rules', () => {
  describe('get', () => {
    afterAll(async () => {
      await teardown();
    });

    test('succeed when a non authenticated user tries to load a store', async () => {
      const db = await setup(null, {
        'stores/ST01': {
          name: 'test',
        },
      });
      const ref = db.collection('stores');

      expect(await assertSucceeds(ref.doc('ST01').get()));
    });

    test('succeed when a authenticated user tries to load a store', async () => {
      const db = await setup(
        {
          uid: 'user',
        },
        {
          'stores/ST01': {
            name: 'test',
          },
        },
      );
      const ref = db.collection('stores');

      expect(await assertSucceeds(ref.doc('ST01').get()));
    });
  });
});

Next up we look at our store list rules, as we’ve made sure that our get and list rules are exactly the same by using the read keyword in the rules we can use very similar tests and expect the same output. The main difference between our list and get rules is obviously that one requires you to pass a specific resource ID whereas the list methods will just return you all the records in the collection.

describe('list', () => {
    afterAll(async () => {
      await teardown();
    });

    test('succeed when a non authenticated user tries to get a list of all stores', async () => {
      const db = await setup(
        null,
        {
          'stores/ST01': {
            name: 'test1',
          },
        },
        {
          'stores/STO2': {
            name: 'test2',
          },
        },
      );
      const ref = db.collection('stores');

      expect(await assertSucceeds(ref.get()));
    });

    test('succeed when a authenticated user tries to load a list of stores', async () => {
      const db = await setup(
        {
          uid: 'user',
        },
        {
          'stores/ST01': {
            name: 'test1',
          },
        },
        {
          'stores/STO2': {
            name: 'test2',
          },
        },
      );
      const ref = db.collection('stores');

      expect(await assertSucceeds(ref.doc('ST01').get()));
    });
  });

The delete and create rules are both set to false and therefore it shouldn’t be possible for any type of user, authenticated or not, to use these methods.

test('fail when a non authenticated user tries to delete a store record', async () => {
    const db = await setup(null, {
      'stores/ST00': {
        name: 'test',
      },
    });

    expect(await assertFails(db.collection('stores').doc('ST00').delete()));
  });

  test('fail when an authenticated user tries to delete a store record', async () => {
    const db = await setup(
      { uid: 'test' },
      {
        'stores/ST00': {
          name: 'test',
        },
      },
    );

    expect(await assertFails(db.collection('stores').doc('ST00').delete()));
  });

With the create rules there are two ways that a document can be added to a collection. Either you use the add method directly on the collection which would create a new record with a random document ID or you would use the doc method to specify an ID for the document and then the set method directly after that to update that document with the fields you want.

// Create a store document with a random ID and a name property
.collection('stores').add({ name: 'test' })

or

// Create a store document with the ID of test and a name property
.collection('stores').doc('test').set({ name: 'test' })

therefore we make sure to test for both these instances

test('fail when a non authenticated user tries to create a store record', async () => {
  const db = await setup();

  expect(await assertFails(db.collection('stores').add({ name: 'test' })));
});

test('fail when a non authenticated user tries to create a store record', async () => {
  const db = await setup();

  expect(await assertFails(db.collection('stores').doc('test').set({ name: 'teegst' })));
});

test('fail when an authenticated user tries to create another store record with a random uid', async () => {
  const db = await setup({ uid: 'test' });

  expect(await assertFails(db.collection('stores').add({ name: 'teegst' })));
});

test('fail when an authenticated user tries to create a non random uid store record', async () => {
  const db = await setup({ uid: 'test' });

  expect(await assertFails(db.collection('stores').doc('test').set({ name: 'teegst' })));
});

Finally for the store records we need to make sure that only users that are ‘admins’ for a store can update the store record, for example maybe you want your staff to be able to update the store opening times or the phone number for the store but obviously they shouldn’t be able to do that for stores they’re not admins for. As mentioned in the previous article we can make use of Firebase auth custom claims to write special data to a users auth token/object, as described we add a stores array to a user and then specify a list of store ID’s corresponding to the ID’s of the stores they’re an admin of. The isStoreStaff method in our rules then can check this stores array on the user request to ensure the user has access to a store as it’s accessed.

test('fail when a non authenticated user tries to update a store record', async () => {
  const db = await setup(null, {
    'stores/SH00': {
      name: 'test',
    },
  });

  expect(await assertFails(db.collection('stores').doc('SH00').set({ name: 'updated' })));
});

test('fail when an authenticated user with no stores tries to update a store record', async () => {
  const db = await setup(
    { uid: 'test' },
    {
      'stores/SH00': {
        name: 'test',
      },
    },
  );

  expect(await assertFails(db.collection('stores').doc('SH00').set({ name: 'updated' })));
});

test('fail when an authenticated user from another store tries to update a different store record', async () => {
  const db = await setup(
    { uid: 'test', stores: ['SH01'] },
    {
      'stores/SH00': {
        name: 'test',
      },
    },
  );

  expect(await assertFails(db.collection('stores').doc('SH00').set({ name: 'updated' })));
});

test('succeed when an authenticated user tries to update a store record to which they have access', async () => {
  const db = await setup(
    { uid: 'test', stores: ['SH00'] },
    {
      'stores/SH00': {
        name: 'test',
      },
    },
  );

  expect(await assertSucceeds(db.collection('stores').doc('SH00').set({ name: 'updated' })));
});

And that’s it for our stores, they’re now tested and we can be fairly confident that we won’t be allowing access to anyone that falls outside of our Firestore ruleset.

Our remaining collections, menus and staff are all tested in a similar way so i won’t be documenting all of their test cases but we can go over a few of the cases we haven’t already covered with our stores. If you want to see all the tests in their entirety then don’t forget that you can visit the repository I have setup to accompany this article on Github.

Testing sub-collections

The most important thing to understand when testing sub-collections is that even though these are descendants or children of our stores collection the rules for the stores do not cascade down onto their sub-collections. I.e. the read rule for the stores being set to false for a store would not prevent anyone from reading any of the store sub-collections, only the store documents themselves.

Security rules apply only at the matched path

see the Firestore docs for more information there.

What we do get when making a request to a sub-collection though is the ID of the parent collection so we can still do checks based on this to ensure the user is a staff member of a store or similar for example. Let’s take a look at an example of this below with our menu create rule tests.

test('fail when a non authenticated user tries to create a menu record', async () => {
  const db = await setup();

  expect(
    await assertFails(
      db.collection('stores').doc('ST00').collection('menus').add({ name: 'test' }),
    ),
  );
});

test('fail when a authenticated store admin from a different store tries to create a menu record with a random ID', async () => {
  const db = await setup({ uid: 'test', stores: ['ST01'] });

  expect(
    await assertFails(
      db.collection('stores').doc('ST00').collection('menus').add({ name: 'test' }),
    ),
  );
});

test('succeed when a authenticated store admin from the same store tries to create a menu record with a random ID', async () => {
  const db = await setup({ uid: 'test', stores: ['ST00'] });

  expect(
    await assertSucceeds(
      db.collection('stores').doc('ST00').collection('menus').add({ name: 'test' }),
    ),
  );
});

With the tests above you can see that we’re first getting into the stores collection, choosing a store by ID and accessing the menus sub-collection then attempting to add a document. If we were to think of this in REST terms you would be looking at a POST request to:

/stores/ST00/menus/

As with our store tests this allows us to match the store ID in the path against the stores object in the user custom claims object which means we can check that the user is a member of this specific store and therefore give them or deny them access to the menu collection and documents.

There’s one more example we should look at inside of our staff rules, the update rule we added includes two conditions, one to check that the data we are trying to edit is actually our own staff record and the other to check the user is also a member of staff for the current store. Again a little convoluted and you’ll probably want staff members to be able to update each others record (or more likely the fabled superadmin/store owner role mentioned previously!)

match /staff/{staffMemberId} {
  allow read, create: if isStoreStaff(storeId);
  allow update: if userOwnsData(staffMemberId) && isStoreStaff(storeId);
  allow delete: if false;
}

Again you can see all the tests for the update rule on Github but let’s go over a few of them below.

First let’s check that a staff member cannot update another staff members record from the same store, similar to our previous menu tests we add a stores array with containing a store ID but this time we actually care what the UID of this user is set to. When accessing the staff collection we are specifying a document by ‘staffMemberId’ which is ultimately equivalent in our application to the users UID. In rest terms you could probably thing of the update happening as a PATCH request to /stores/ST00/staff/SM00. If the ID of the document we’re trying to update matches our requesting user ID and the user we passed is also staff member of the store then we can respond successfully, in the case below though the users ID does not match the record we’re trying to update even though they are a member of the correct store.

test('fail when a store admin tries to update another staff member from the same store', async () => {
  const db = await setup(
    {
      uid: 'SM01',
      stores: ['ST00'],
    },
    {
      'stores/ST00/staff/SM00': {
        name: 'staffmember',
      },
    },
  );
  const ref = db.collection('stores').doc('ST00').collection('staff');

  expect(await assertFails(ref.doc('SM00').update({ name: 'newTest' })));
});

Next up we have a test to check that if the user ID doesn’t match the staff record we want to update and also that our user is not a staff member of the store that we will fail the request

test('fail when a store admin from a different store tries to update another staff member from another store', async () => {
  const db = await setup(
    {
      uid: 'SM01',
      stores: ['ST01'],
    },
    {
      'stores/ST00/staff/SM00': {
        name: 'staffmember',
      },
    },
  );
  const ref = db.collection('stores').doc('ST00').collection('staff');

  expect(await assertFails(ref.doc('SM00').update({ name: 'newTest' })));
});

Finally we check that when the user ID matches the staff member document ID and that the user is a staff member of the store as defined in the stores custom claim on the auth object that we allow the request to succeed.

test('succeed when a user is a staff member and they try to update their own staff record', async () => {
  const db = await setup(
    {
      uid: 'SM00',
      stores: ['ST00'],
    },
    {
      'stores/ST00/staff/SM00': {
        name: 'staffmember',
      },
    },
  );
  const ref = db.collection('stores').doc('ST00').collection('staff');

  expect(await assertSucceeds(ref.doc('SM00').update({ name: 'newTest' })));
});

That’s really all there is to it, we’ve covered a few simple rules and test cases and how to access data from our request / user to validate against data in our database before we respond to the request. We’ve looked at chaining conditions and also at nesting rules and how to test nested rules and the implications around nested rules. Hopefully this gives you a little heads up of how to approach testing your Firebase Firestore rules. It’s absolutely essential to test these rules to reduce the risk of any of your data leaking or being easily accessible to the wrong people. Feel free to fork the companion repository and build from there if you’re just getting started or want some place to start.
